Rof Electro-optic modulator 1550nm AM Series Intensity Modulator 40G
Hiʻona
* Haʻahaʻa hoʻokomo poho
* Ka Bandwidth kiʻekiʻe
* Haʻahaʻa haʻahaʻa haʻahaʻa hawewe
* Koho hoʻopilikino
Palapala noi
⚫ ʻōnaehana ROF
⚫ Māhele kī nui
⚫ Pūnaehana ʻike laser
⚫ Hoʻololi i ka ʻaoʻao
| ʻO Rof-AM moʻo | ʻO Rof-AM-07 | ʻO Rof-AM-08 | ʻO Rof-AM-10 | ʻO Rof-AM-13 | ʻO Rof-AM-15 | |||
| Ka lōʻihi nalu hana | 780nm | 850nm | 1064nm | 1310nm | 1550nm | |||
| Bandwidth | 10GHz | 10GHz | 10/20GHz | 2.5GHz | 50GHz | 10GHz | 20GHz | 40GHz |
| Nalo hookomo | ＜5dB | ＜5dB | ＜5dB | ＜5dB | ＜4dB | |||
| Laki hoopau @DC | ＞20dB | ＞20dB | ＞20dB | ＞20dB | ＞20dB | |||
| VΠ @RF (1KHz) | ＜3V | ＜3V | ＜4V | <3.5V | ＜6V | <5V | ||
| VΠ @Bias | ＜3.5V | ＜3.5V | ＜5V | <5V | <8V | <7V | ||
ʻIke Kauoha
| ʻO Rof | AM | XX | XXG | XX | XX | XX |
| ʻAno: AM---Modulator Intensity | Loʻihi nalu: 07---780nm 10---1060nm 13---1310nm 15---1550nm | Kaʻeleʻele: 10GHz 20GHz 40GHz 50GHz
| Nānā PD: PD---Me PD | ʻAno Fiber In-Out: PP---PM/PM
| Hoʻohui Optical: FA---FC/APC FP---FC/PC SP---Hoʻopilikino |
R-AM-15-40G
Wavalongth 1550nm 40GHz Intensity modulator
| ʻĀpana | hōʻailona | Min | ʻAno | Max | Unite | ||||
| Nā ʻāpana opi | |||||||||
| Ka lōʻihi nalu hana | l | 1530 | 1550 | 1565 | nm | ||||
| poho hookomo | IL | 4 | 5 | dB | |||||
| ʻO ka poho hoʻihoʻi ʻana | ORL | -45 | dB | ||||||
| Hoʻololi i ka lākiō hoʻopau @DC | ER@DC | 20 | 23 | 45 | dB | ||||
| Lakiō hoʻopau dynamic | DER | 13 | dB | ||||||
| ʻO ka fiber Optical | Hookomoawa | Panda PM Fujikura SM | |||||||
| puka puka | Panda PM Fujikura SM | ||||||||
| Pākuʻi fiber Optical | FC/PC、FC/APC A i ʻole mea hoʻohana e kuhikuhi | ||||||||
| Nā palena uila | |||||||||
| Ka bandwidth hana（-3dB） | S21 | 28 | 30 | GHz | |||||
| Volta hawewe hapalua Vpi | RF | @50KHz |
| 4.5 | 5 | V | |||
| Kūʻē | @Bias |
| 6 | 7 | V | ||||
| Ke poho hoʻihoʻi uila | S11 | -12 | -10 | dB | |||||
| Hoʻokomo impedance | RF | ZRF | 50 | W | |||||
| Kūʻē | ZBIAS | 1M | W | ||||||
| Pili uila | V(f) | ||||||||
Nā Kūlana palena
| ʻĀpana | hōʻailona | Unite | Min | ʻAno | Max |
| Hoʻokomo i ka mana optical | Pma, Max | dBm | 20 | ||
| Hoʻokomo i ka mana RF | dBm | 28 | |||
| uila uila | Vbias | V | -15 | 15 | |
| Hana wela | ʻO luna | ℃ | -10 | 60 | |
| ʻO ka mahana mālama | ʻO Tst | ℃ | -40 | 85 | |
| Ka haʻahaʻa | RH | % | 5 | 90 |

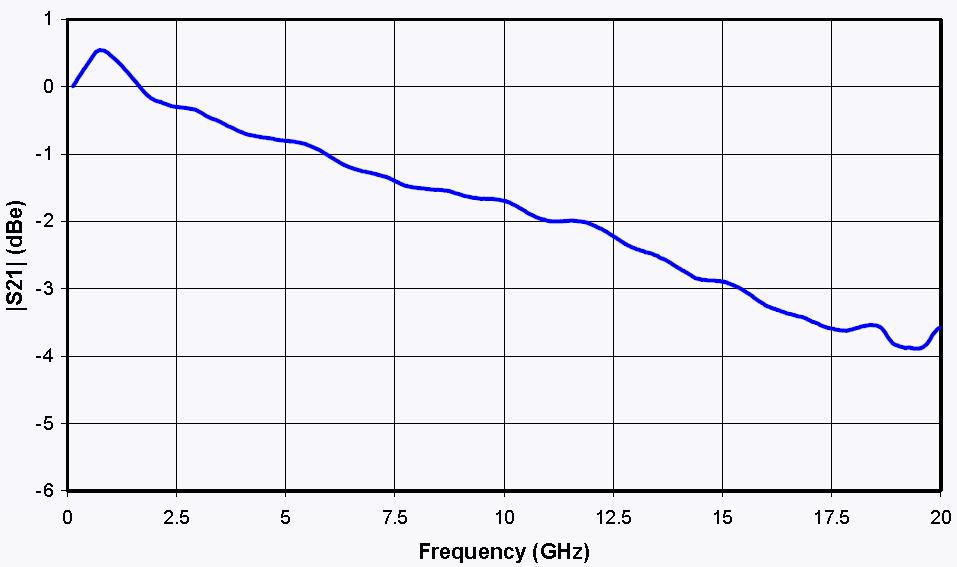

S21 Pipi
&S11 Pipi
S21&s11 kaha
Kiʻi mīkini
| AWA | hōʻailona | Nānā |
| In | awa hookomo Optical | Uila PM (125μm/250μm) |
| Iwaho | awa puka puka | PM a me SMF koho |
| RF | awa hookomo RF | SMA(f) |
| Kūʻē | awa hoʻomalu bias | 1,2 Kūlike, 34-N/C |
