ʻO Ultra Compact IQ Modulator Bias Controller Automatic Bias Controller
Hiʻona
• Hāʻawi i ʻekolu manaʻo no ka IQ modulators Modulation format kūʻokoʻa:
•QPSK, QAM, OFDM, SSB hōʻoia
• Hoʻopili a pāʻani:
ʻAʻole pono ka calibration manual
• Nā lima I, Q: hoʻomalu i nā ʻano Peak a me Null Lakiō hoʻopau kiʻekiʻe: 50dB max1
•P lima: ka hoomalu ana ma Q+ a me Q- Ka pololei: ± 2◦
•Kuhi haʻahaʻa: 40mm(W) × 28mm(D) × 8mm(H)
• Paʻa kiʻekiʻe: hoʻokō kikohoʻe piha Maʻalahi e hoʻohana:
• Ka hana lima me ka mini jumper Hoʻololi OEM hana ma o UART2
• ʻElua mau ʻano no ka hāʻawi ʻana i nā volt bias: a.Automatic Bias Control b.User definition bias voltage
Palapala noi
•LiNbO3 a me nā mea IQmodulators ʻē aʻe
•QPSK, QAM, OFDM, SSB a pela aku
•Ka Hoʻouna Kūlike
hana

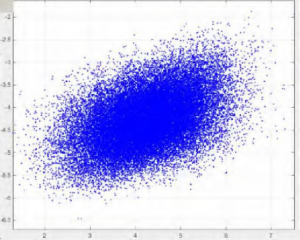

Kiʻi 1. Hui Hoʻokele (me ka ʻole o ka mea hoʻoponopono)
Kiʻi 2. QPSK Constellation (me ka mea hoʻoponopono

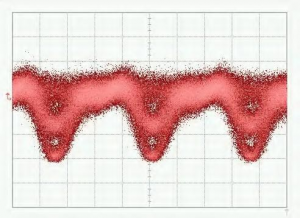

Kiʻi 3. QPSK-Nā maka
Kiʻi 5. 16-QAM Constellation pattern
Kiʻi 4. QPSK Spectrum
Helu 6. 16-QAM Spectrum
Nā kikoʻī
| ʻĀpana | Min | ʻAno | Max | Unite |
| Hana Mana | ||||
| Hoʻomalu ʻia nā lima I, QNull(Ka palena iki) a i ʻoleKiʻekiʻe (ʻoi loa) kiko | ||||
| Laki hoopau | MER1 | 50 | dB | |
| Hoʻomalu ʻia ka lima PQ+(ʻākau quadrature) a i ʻoleQ-( hema quadrature) kiko | ||||
| Ka pololei ma Quad | −2 | +2 | degere2 | |
| Ka manawa hoʻopaʻa | 15 | 20 | 25 | s |
| Uila | ||||
| Volta mana maikaʻi | +14.5 | +15 | +15.5 | V |
| Ka mana kūpono | 20 | 30 | mA | |
| Puke uila ʻino | -15.5 | -15 | -14.5 | V |
| Ka mana ʻino ʻino | 8 | 15 | mA | |
| Laulā uila puka | -14.5 | +14.5 | V | |
| Amplitude dither | 1%Vπ | V | ||
| Optical | ||||
| Hoʻokomo i ka mana optical3 | -30 | -8 | dBm | |
| Loʻihi nalu hoʻokomo | 1100 | 1650 | nm | |
1. E pili ana ka MER i ka Modulator Extinction Ratio. ʻO ka ratio extinction i loaʻa ʻo ia ka ratio extinction o ka modulator i kuhikuhi ʻia i ka datasheet modulator.
2. E ʻoluʻolu e hoʻomaopopo ʻia ʻaʻole i kūpono ka mana optical input i ka mana opi ma kahi kikoʻī i koho ʻia. E pili ana ia i ka mana optical kiʻekiʻe loa e hiki ai i ka modulator ke hoʻokuʻu aku i ka mea hoʻoponopono i ka wā e piʻi ai ka uila bias mai −Vπ a i +Vπ.
Mea hoʻohana Interface
Kii5. Ahahui
| Pūʻulu | Hana | Wehewehe |
| Hoʻoponopono hou | E hoʻokomo i ka jumper a huki i waho ma hope o 1 kekona | Hoʻoponopono hou i ka mea hoʻoponopono |
| Ka mana | Puna mana no ka mea hoʻoponopono bias | Hoʻohui ʻo V i ka electrode ʻino o ka lako mana |
| Hoʻohui ʻo V+ i ka electrode maikaʻi o ka lako mana | ||
| Hoʻopili ke awa waena me ka electrode lepo | ||
| Polar1 | PLRI: Hookomo a huki mai i ka lele | ʻaʻohe mea lele: Null mode; me ka mea lele: ke ʻano kiʻekiʻe |
| PLRQ: Hoʻokomo a huki paha i ka lele | ʻaʻohe mea lele: Null mode; me ka mea lele: ke ʻano kiʻekiʻe | |
| PLRP: Hoʻokomo a huki paha i ka lele | ʻaʻohe mea lele: Q + mode; me ka lele: Q- mode | |
| LED | E mau ana | Ke hana nei ma lalo o ke kūlana paʻa |
| On-off a i ʻole i kēlā me kēia 0.2s | Kaʻana i ka ʻikepili a me ka ʻimi ʻana i kahi mana | |
| On-off a i ʻole i kēlā me kēia 1 mau hola | Nawaliwali loa ka mana optical hookomo | |
| On-off a i ʻole i kēlā me kēia 3 mau hola | ʻOi aku ka ikaika o ka mana optical hoʻokomo | |
| PD2 | E hui me ka photodiode | Hoʻopili ke awa PD i ka Cathode o ka photodiode |
| Hoʻopili ke awa GND i ka Anode o ka photodiode | ||
| Nā Voltage Bias | I, Ip: Bias voltage no I lima | Ip: ʻaoʻao maikaʻi; Ma: ʻaoʻao ʻino a lepo paha |
| Qn, Qp: Volta uila no ka lima Q | Qp: Ka aoao maikai; Qn: ʻaoʻao maikaʻi ʻole a lepo paha | |
| Pn, Pp: Volta hoʻokaʻawale no ka lima P | Pp: ʻaoʻao maikaʻi; Pn: ʻaoʻao ʻino a lepo paha | |
| UART | E hoʻohana i ka mea hoʻoponopono ma o UART | 3.3: 3.3V kaha kuhikuhi |
| GND: Ka honua | ||
| RX: Loaʻa i ka mea hoʻoponopono | ||
| TX: Hoʻouna i ka mea hoʻoponopono |
1 Polar pili i ka ʻōnaehana RF hōʻailona. Inā ʻaʻohe hōʻailona RF i ka ʻōnaehana, pono ka polar i ka maikaʻi. Ke ʻoi aku ka nui o ka hōʻailona RF ma mua o kahi pae, e hoʻololi ka polar mai ka maikaʻi i ka maikaʻi ʻole. I kēia manawa, e hoʻololi ka helu Null a me ka Peak me kekahi.
pololei me ka hoololi ole i na wahi hana.
2Hoʻokahi wale nō koho e koho ʻia ma waena o ka hoʻohana ʻana i ka photodiode controller a i ʻole ka hoʻohana ʻana i ka photodiode modulator. Manaʻo ʻia e hoʻohana i ka photodiode mana no nā hoʻokolohua Lab no nā kumu ʻelua. ʻO ka mea mua, ua hōʻoia ka mana photodiode i nā ʻano maikaʻi. ʻO ka lua, ʻoi aku ka maʻalahi o ka hoʻoponopono ʻana i ka ikaika o ke kukui hoʻokomo.
